Smart Temperature Transmitter

Submit a Quote Request with Ease

Add your desired products to the cart and submit your list for a quote—quick, easy, and without obligation. If you have any questions, please email us.
Email now

Inquiries and Support

Should you have any inquiries regarding our products or their applications, please feel free to contact us by phone. We are here to assist you.
Call now

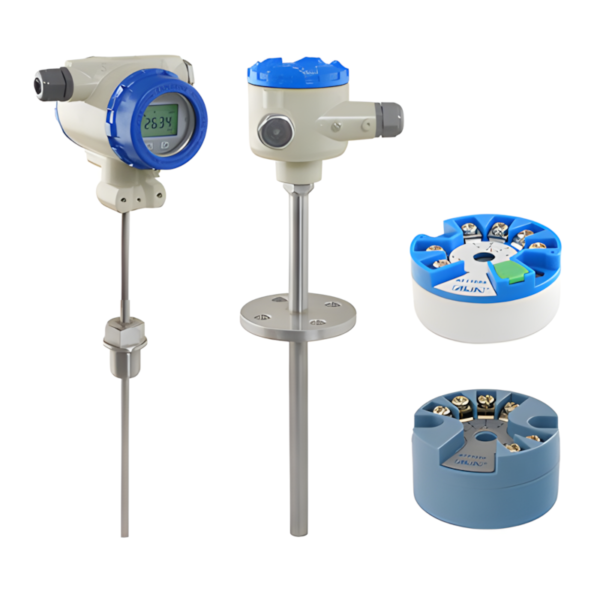

ATT1000 Series

Datasheet

The ATT1000 Series two-wire input temperature transmitter offers high performance and flexibility for temperature measurement. It accepts inputs from thermocouples, RTDs, resistance, or mV signals and provides a 4-20 mA output with HART communication. Designed for precision, it features an updating time of 90 ms, an accuracy of ±0.1% of span, and a two-year stability of 0.1%. The transmitter includes a backlit LCD display that can be rotated to any angle for easy viewing. Parameters can be set directly via the keypad or HART communication, with automatic zero calibration enabled by a press button. Its explosion-proof and weatherproof housing ensures reliability in demanding industrial environments.

Technical Specifications
Inputs

Universal Input
Thermalcouple: T/C (K, S, B, E, J, T, R, N)…
RTD: CU50 / PT100, 2 / 3 / 4-Wire…
mV: -128~128 mV / -1000~1000 mV…
Resistance: 0-600 Ω / 0-5000 Ω
Accuracy

+/-0.1% of span
Stability

+/-0.1% of span for 2 years
Temperature Effect

+/-0.1% of span per 10 °C
CJC Compensation

+/-0.5 °C
Simulation Output

4-20 mA
Material

Wetted Parts: S.S. 304 / S.S. 316 / Has. C / Tantalum etc.
Housing: Low copper aluminum alloy (Sprayed with light blue polyurethane paint)
Module Housing: Flame-resistant PC
Name / Tag Plate: Stainless Steel 304 / Stainless Steel 316
Process Connection

Threads / Flanges
Over Temp. Limit

120% of Full Scale
Mounting

Direct mounting or bracket on 2" Pipe
Humidity Limit

0-100% Relative Humidity
Ambient Temperature

-25~85 °C
Vibration Effect

+/-0.05% of URL per g to 200 Hz in any axis
EMI / RFI Effect

Follow SAMA PMC 33.1 from 20-1000 MHz and for field strengths up to 30 V/m
Display

Backlit LCD rotatable to any angle
Display Function

5 Digits programmable & 0-100% Bargraph
Display Unit

°C / °F / °R / °K
Setting Method

B Type: USB + PC software (windows system)
C Type: HART signal (Compatible)
D Type: HART signal (Compatible)& keypad
Current Output

4-20 mA 2-Wire with HART Signal
Load: Rohm = (VDC-9) * 50
Power Supply

9-36 VDC
Digital Communication

HART Protocol
Cable Entry

M20 Conduit Threads / 1/2" NPT (Female)
Damping

0-32 Seconds
Response Time

100 ms
Turn on Time

2 Seconds with minimum damping
Zero Calibration

Automatic zero calibration by press-button
Isolation

Input / Output / GND isolated to 480 VDC
Power Supply Effect

+/-0.005 of Span per V
Weight

60 g (Converter only) with display
30 g (Converter only) without display
Protection Class

IP67 (Standard)
Intrinsically Safe, Eex ia IIC T5 (Standard)
Explosion proof, Ex d IIB T5
Sensor Connection

M27 * 2 (Female)
