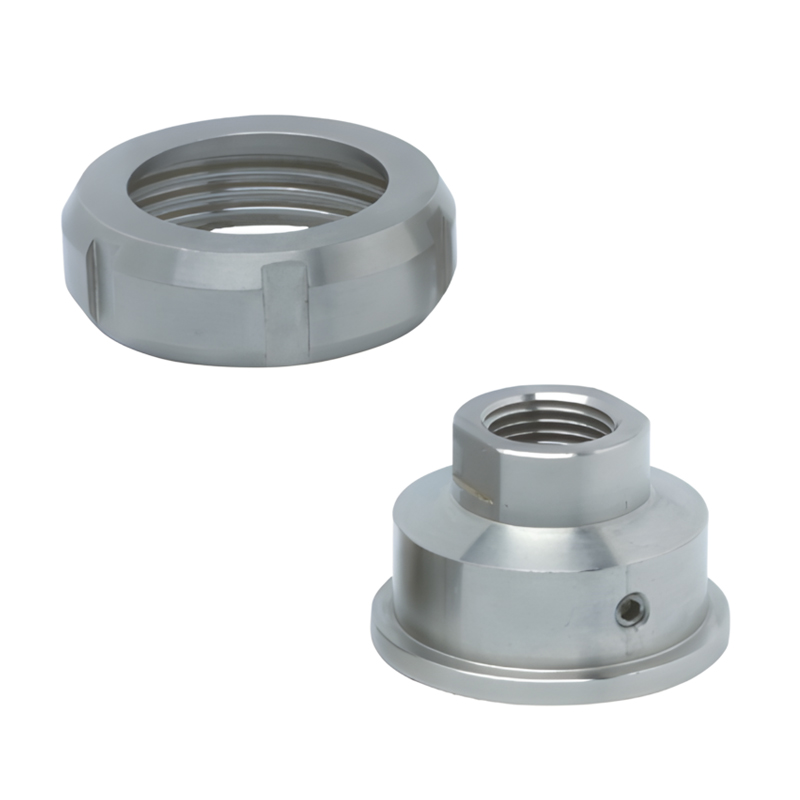

Sanitary Diaphragm Seal – with Union Nut
Submit a Quote Request with Ease
Add your desired products to the cart and submit your list for a quote—quick, easy, and without obligation. If you have any questions, please email us.
Inquiries and Support
Should you have any inquiries regarding our products or their applications, please feel free to contact us by phone. We are here to assist you.
D302
Datasheet
The diaphragm seal features a quick connect/disconnect design with a union nut connection for easy installation and removal. Its laser-welded diaphragm ensures durability, and it is available with a 3A certification, meeting stringent hygienic standards.
This seal is ideal for applications in the food and beverage industries, dairy and ice cream production, as well as the pharmaceutical and cosmetics sectors.
Technical Specifications
| Style | Sanitary type diaphragm seal – with union nut |
|---|---|
| Suitable ranges | -1 to 40 bar |
| Bottom chamber | 316 stainless steel |
| Diaphragm | 316L stainless steel |
| Process connection | DIN, SMS, RJT, IDF/ISS |
