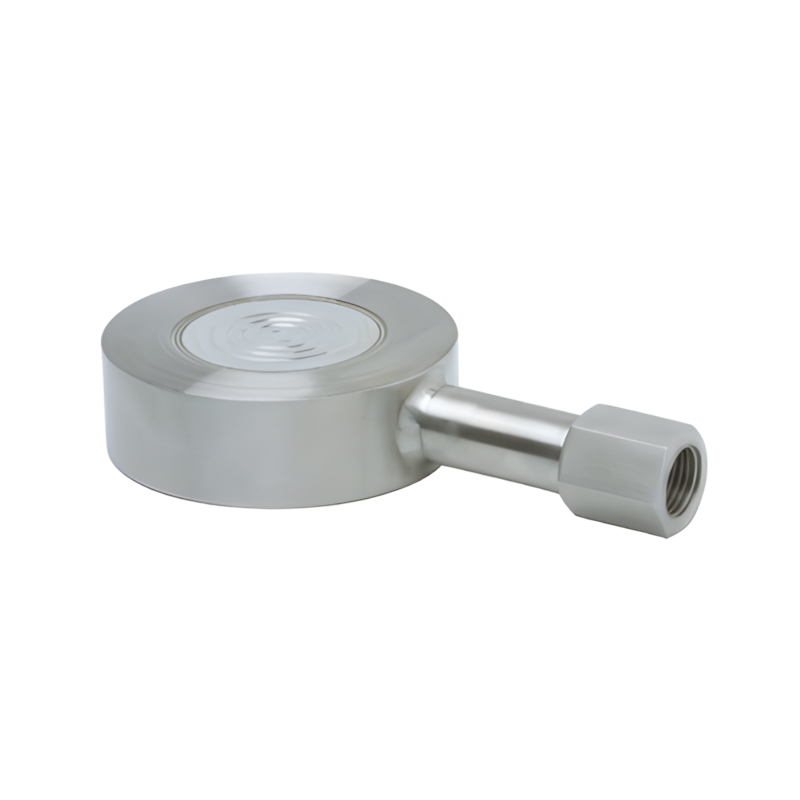

Flanged Diaphragm Seal Cell Type

Submit a Quote Request with Ease

Add your desired products to the cart and submit your list for a quote—quick, easy, and without obligation. If you have any questions, please email us.
Email now

Inquiries and Support

Should you have any inquiries regarding our products or their applications, please feel free to contact us by phone. We are here to assist you.
Call now

D402

Datasheet

The diaphragm seal is designed for flush fitment in pipelines and features a laser-welded diaphragm for durability and reliability. Optional exotic materials are available to meet specific process requirements.

It is suitable for handling aggressive, highly viscous, crystallizing, or superheated fluids, making it ideal for the process industry and high-pressure applications.

Technical Specifications
Style

"Wafer" diaphragm seal
Suitable ranges

10 to 400 bar
Bottom chamber

316 stainless steel
Diaphragm

316L stainless steel
Process connection

Flange (ANSI, EN, JIS)
