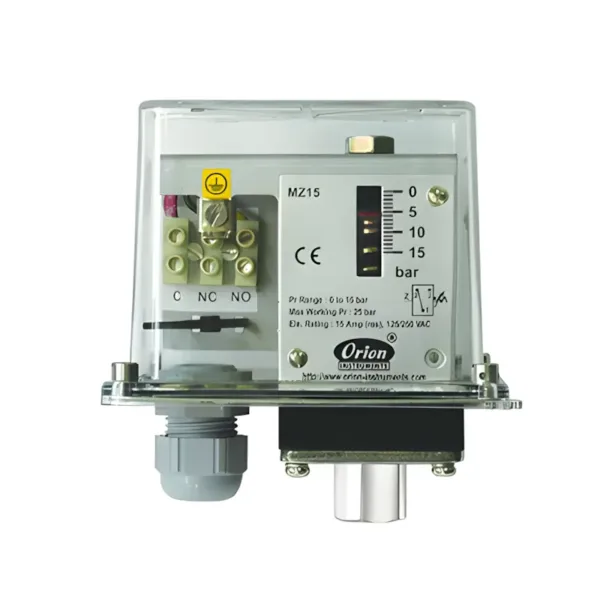

MZ Series

Datasheet

MZ Series pressure switches are designed for cost-effective outdoor applications in harsh environments. Featuring a durable polycarbonate cover on a stainless steel base secured with SS screws, they provide excellent corrosion resistance while allowing visibility of the internal scale and mechanism. Equipped with a reliable microswitch, these switches deliver a narrow deadband and highly repeatable switching values. With adaptable capsules and wetted parts, MZ Series switches are versatile for various applications, including power generation, burners, furnaces, glass and metal industries, chemical processing, steel manufacturing, turbines, boilers, compressors, machine tools, water treatment, sugar and paper mills, fire protection, and industries like surgical gas, breweries, dairy, and tyre production.

Technical Specifications

Storage Temp.	Atmospheric temperature
Operating ambient Temp.	-20 deg C to + 60 deg C
Media Temp.	for rubber diaphragms 80 o C max
Set point repeatability	± 1 % of FSR
Enclosure	Tough Polycarbonate and SS to IP 66
Switch output	SPDT / 2SPDT
Process connection	1⁄4 “BSP standard
Weight	1 kg
Features	Robust Externally visible scale,with tough polycarbonate cover Enclosure Protection: IP66 standard Reliable accurate microswitches for long life switching Customized arrangements for switching values on request Easy safe wiring options Locking & sealing arrangements to avoid tampering of setpoints on field Accuracy: +/- 1% FSR Warranty: 2 Years *Accuracy changes with switch configuration
