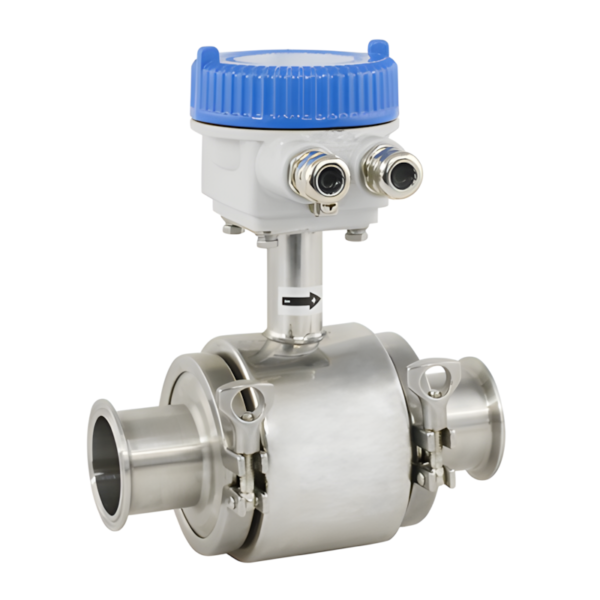

AMF601 Series
The AMF601 Series is a sanitary electromagnetic flowmeter designed for conductive liquids, available in sizes from 10 to 80 mm. Ideal for applications such as drinking water, milk, and juices in the food and beverage industry, it can operate in compact or remote configurations with the AMC Series converter. Its light, compact design ensures precision in low-flow applications with a velocity range of 0-12 m/s. The flowmeter features IDF Tri-Clamp or Union screw connections, supports high-pressure use, and includes IP68-rated submersible sensors with FEP liners for vacuum tubes. It provides high accuracy of ±0.4% (or ±0.2%) and offers forward/reverse flow rate measurement functionality.
Technical Specifications
| Measuring Range | Velocity 0-0.25 m/s min 0-12 m/s max |
|---|---|
| Material | Tube & Connection: Stainless Steel 304, 316, 316L |
| Protection Class | Junction box IP67, Body IP68, IP68 (Submersible) |
| Conductivity | More than 5 μS/cm |
| Cable Entry | Standard: M20, Option: 1/2" NPTF |
| Ambient Temperature | -25~60°C |
| Process Connection | IDF Tri-Clamp |
| Grounding Resistance Accuracy | +/-0.5% reading (Velocity≥0.5 m/s), +/-0.2% reading (Suitable for AMC3200 / 3200E converter) |
| Max Pressure | 10 kgf/cm2 (Standard), 40 kgf/cm2 (Option) |
| Explosion Proof | Ex d ia [ia] q llC T6 (with AMC3200, AMC3200DF only) |
| Size (Option) | DN10, DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80 |
