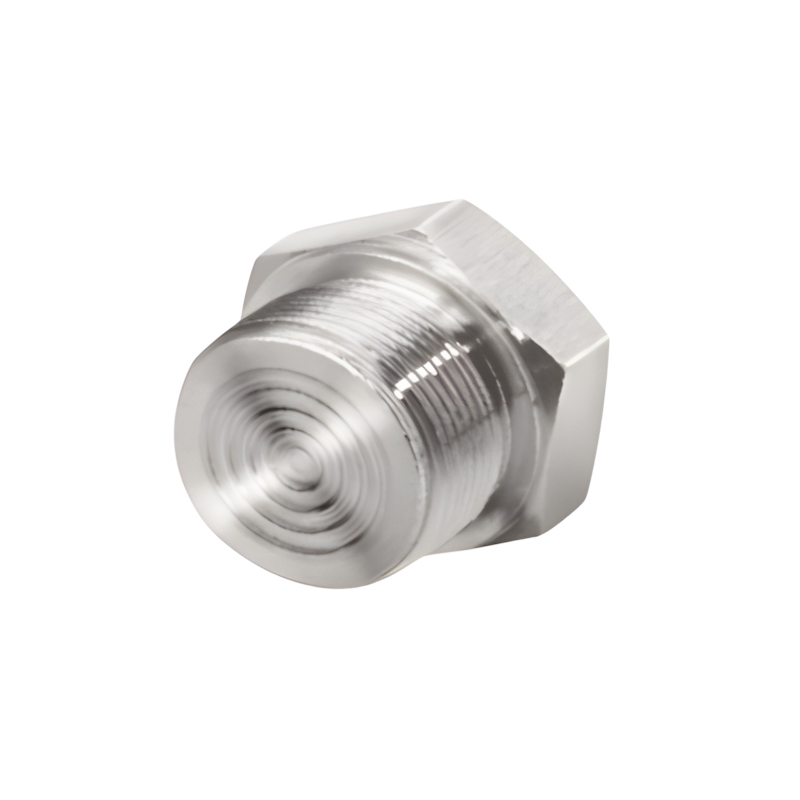

Threaded Diaphragm Seal – Flush Diaphragm

Submit a Quote Request with Ease

Add your desired products to the cart and submit your list for a quote—quick, easy, and without obligation. If you have any questions, please email us.
Email now

Inquiries and Support

Should you have any inquiries regarding our products or their applications, please feel free to contact us by phone. We are here to assist you.
Call now

D104

Datasheet

The diaphragm seal features a one-piece construction with a compact and lightweight design, ensuring durability and ease of use. It’s a laser-welded, flushed diaphragm and is compatible with DN63 pressure gauges and transmitters.

This seal is ideal for applications in food and pharmaceutical industries, energy sectors, sanitary systems, and OEM requirements.

Technical Specifications
Type

Flush diaphragm
Suitable ranges

4 to 600 bar
Bottom chamber

316 stainless steel
Diaphragm

316L stainless steel
Body

One piece construction
