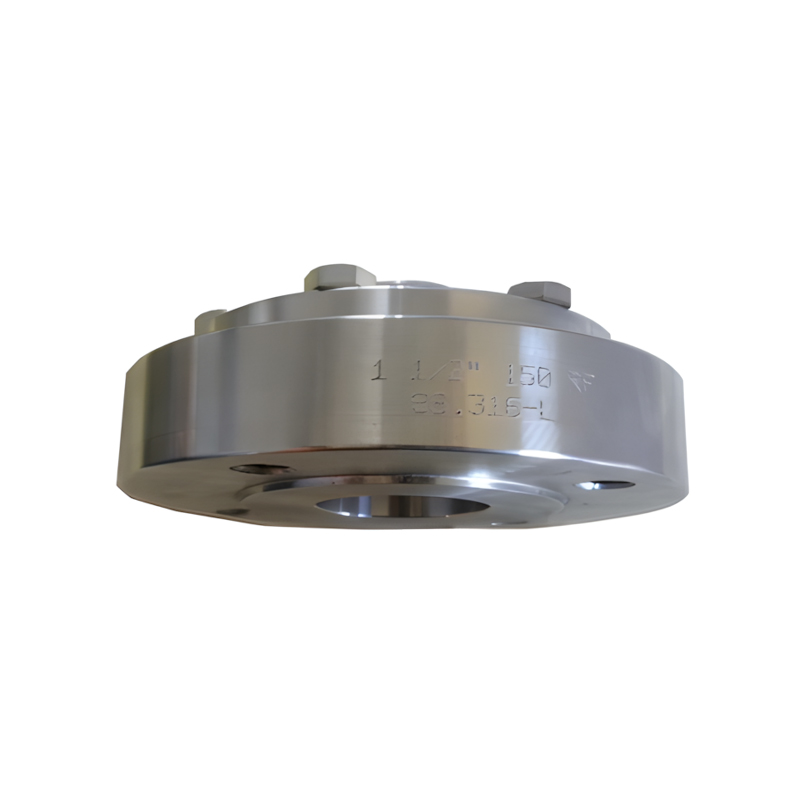

Flanged Diaphragm Seal – Inner Diaphragm
Submit a Quote Request with Ease
Add your desired products to the cart and submit your list for a quote—quick, easy, and without obligation. If you have any questions, please email us.
Inquiries and Support
Should you have any inquiries regarding our products or their applications, please feel free to contact us by phone. We are here to assist you.
D212
Datasheet
The diaphragm seal is designed with an internal diaphragm for low-pressure applications. It features a laser-welded diaphragm on the upper part and offers a wide selection of materials for both the diaphragm and lower housing. An optional built-in flushing connection is available for enhanced maintenance and functionality.
This seal is ideal for applications in oil and gas, refineries, chemical and petrochemical industries, as well as water and wastewater systems.
Technical Specifications
| Style | Flanged, internal diaphragm |
|---|---|
| Suitable ranges | -1 to 250 bar |
| Diaphragm | 316L SS (Monel, HC276, Alloy 625, Tantal, PTFE option) |
| Bottom chamber | 316 SS (Monel, HC276, Alloy 625, PTFE lined option) |
| Process connection | Flange (ANSI, EN, JIS), threaded design |
